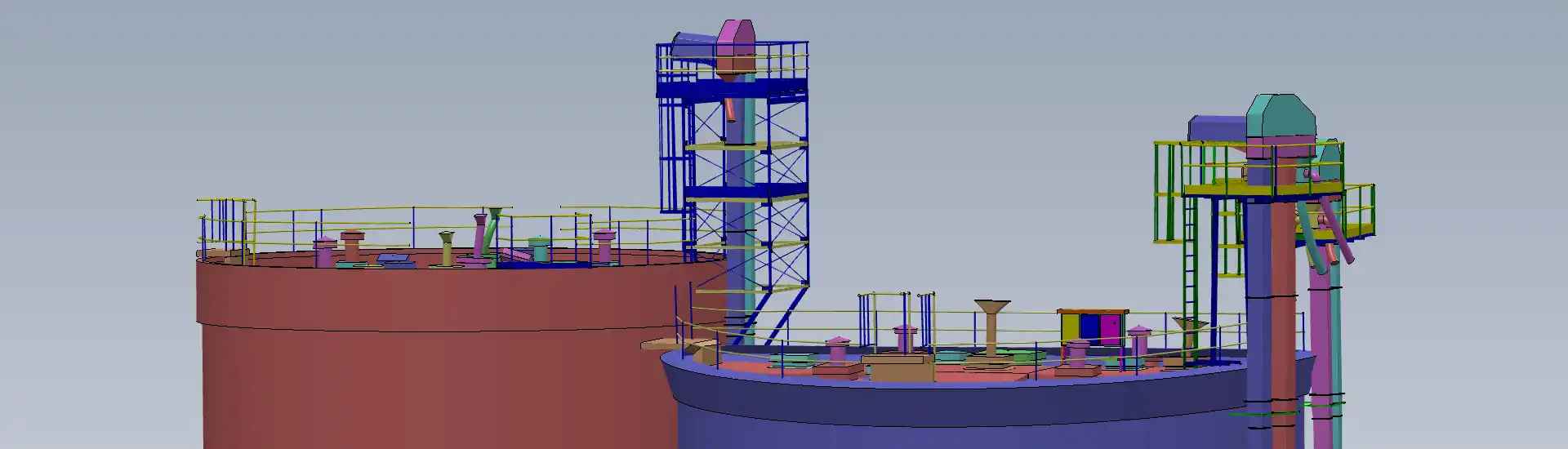

As-Build 3D CAD Model from Point-Cloud
Service: As-Built 3D Modeling, 3D Data Optimization
Location: Confidential
Duration: September 2025 - October 2025
Project Overview
Description:
For this project, we developed an As-Built 3D model of an existing storage tank using point cloud data. The main objective was to accurately capture and assess the tank’s deformation and provide reliable data for planning the required corrective actions. The model was optimized and structured for efficient use by all project stakeholders.
Scope of Work:
As-Built 3D Modeling:
Created an accurate As-Built 3D model of the existing storage tank from point cloud data.
Captured the existing geometry and deformation to support further inspection and engineering assessment.
3D Data Optimization:
Optimized the 3D model and point cloud data for efficient use across different stakeholder workflows.
Structured the model to ensure easy access, visualization, and further analysis.
Key Outcomes:
Accurate Deformation Assessment: Delivered a reliable 3D representation of the existing tank geometry to support deformation assessment.
Engineering Planning: Provided accurate digital data to help the client plan the required corrective and repair activities.
Stakeholder Accessibility: Optimized the model for easy use and collaboration by different project stakeholders.
This project provided the client with an accurate and optimized digital representation of the existing storage tank, enabling better assessment of its condition and more informed planning of the next engineering and corrective actions.
